WARD - LIGHTING
All products adhere to the SABS 154 specification

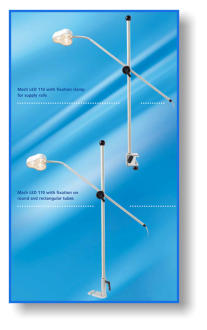

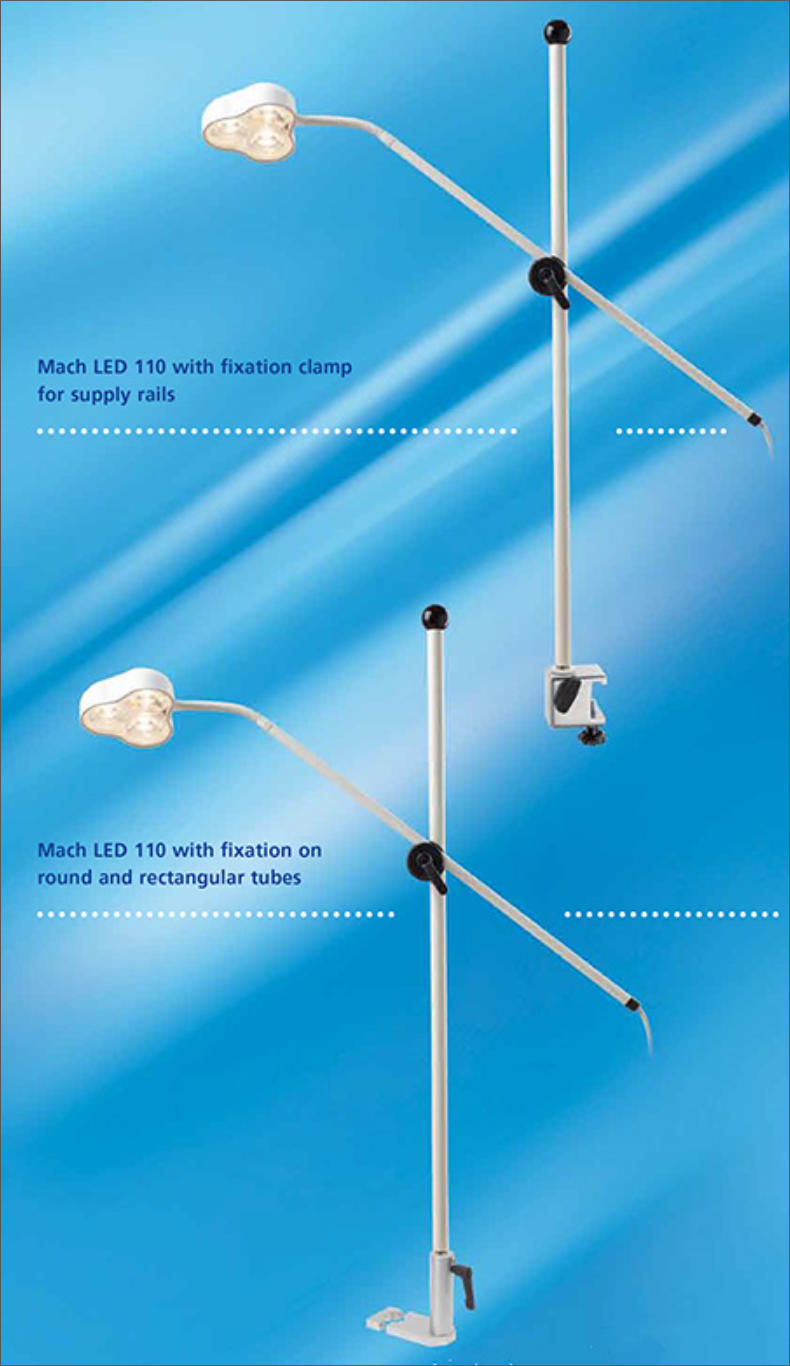

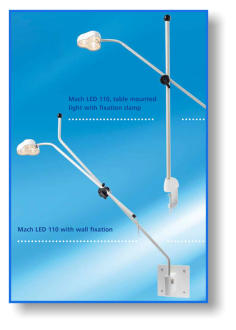

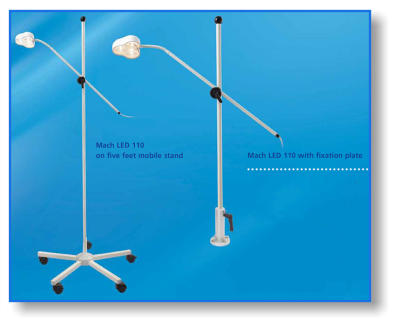

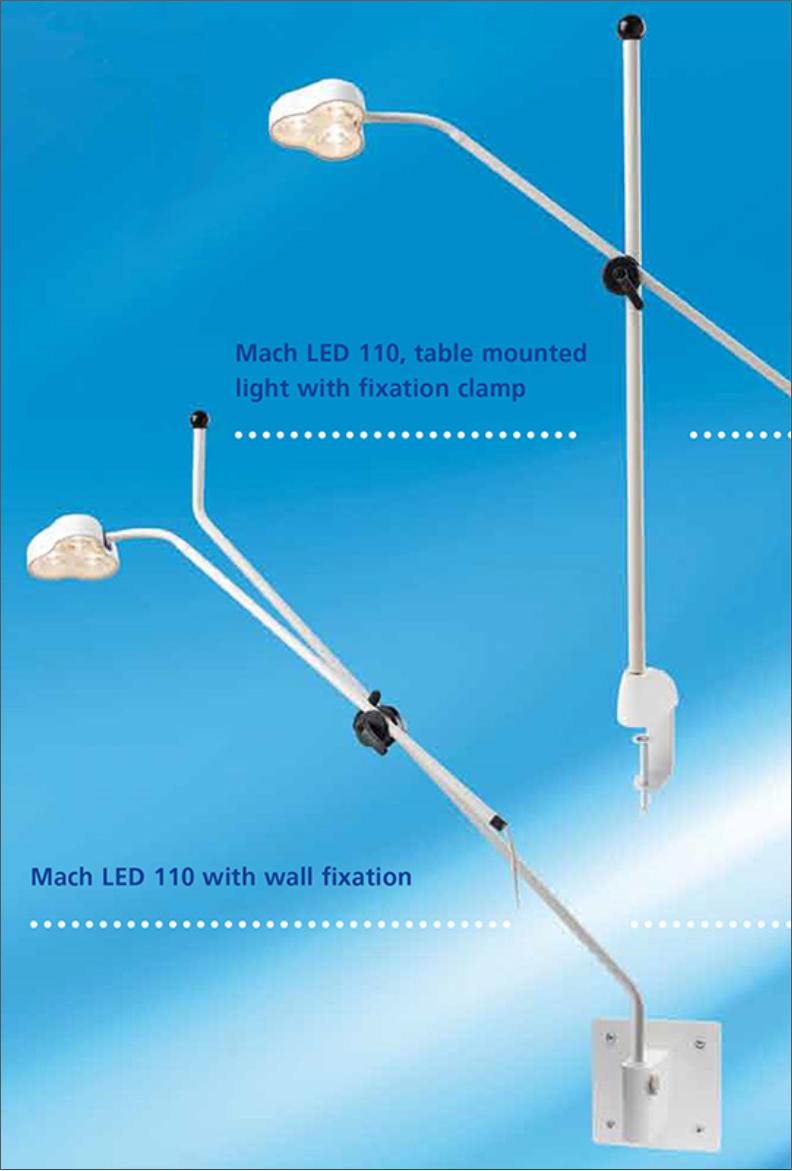

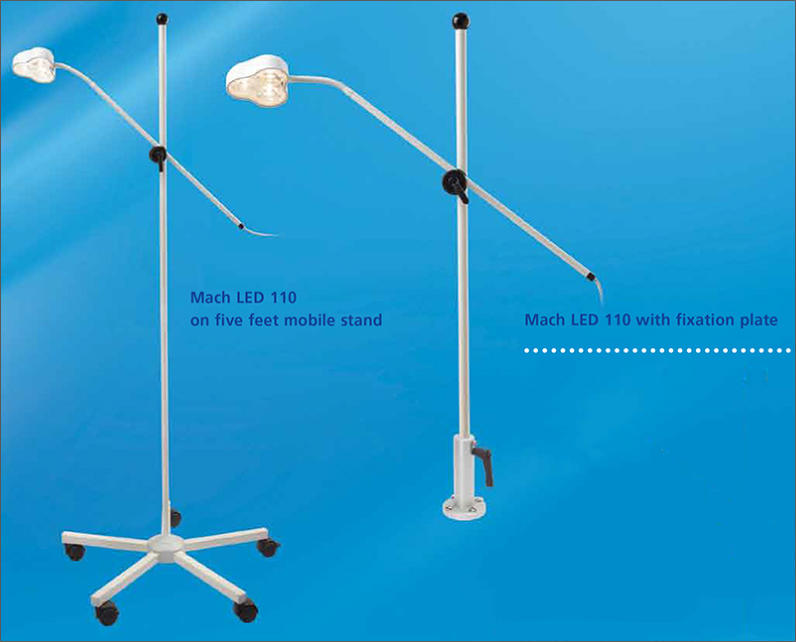

LED 110 - Compact examination light with LED-technology
Superiour colour rendition
With an outstanding colour rendering index Ra = 95 the surgeon recognizes clearly the tiniest nuances of colour in tissue. The colour spectrum of the
surgical field is rendered naturally with rich contrast.The OT-light clearly provides welcome relief for your eyes.

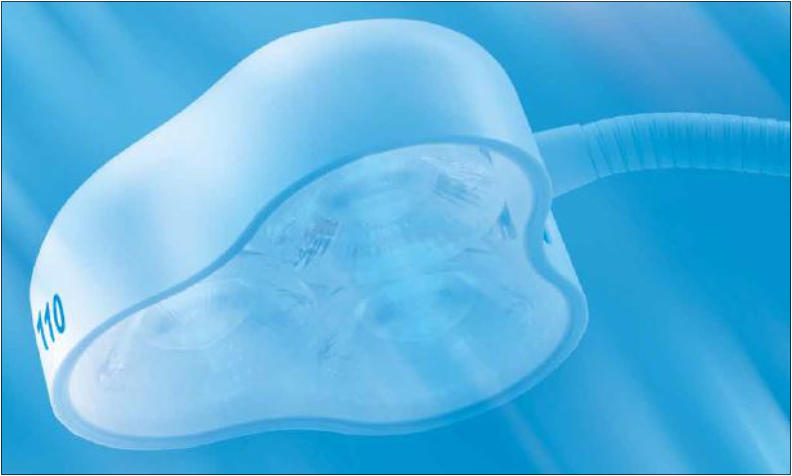

Facetted multi-lens system
A multitude of computer-calculated facetted lenses guarantees homogeneity and lowest shadiness in the light field. Separately arranged optical systems,
each with one LED module, generate their own light field, which increases the contrast effect of the OR light.
LED110- Light intensities of 35.000 Lux at a distance of 0,5 meters can be can be attained without difficulty.
LED130- Light intensities of 60.000 Lux can be attained without difficulty.
LED150- Light intensities of 100.000 Lux can be attained without difficulty
Key pad on the lamp housing
LED110-The light can be switched on and off electronically at the key pad on the light head.
LED130-Switching ON and OFF, Electronic light intensity control
Handling
LED110-During development high attention was paid to easy handling and high ease of maintenance. The light can be positioned exactly to the wound
field with the flexible connecting element.
LED130-Furthermore the flow-enhancing ring form and the minimal surface avoid any heat increase in the surgeon’s head area and create a perfect
laminar flow performance. The light can be positioned exactly to the wound field with the handle
Long life-span/low power consumption
The life-span of more than 40.000 operating hours reduces the costs for exchanging and replacing the illuminants considerably, compared with the
conventional halogen technology used with former OT-lights. By implementation of the LED technology the power consumption could be reduced with
more than 50% to conventional halogen lights.
Cool light
The LED technology is much more effective than conventional light sources such as halogen bulbs. The heat radiation is reduced to a minimum. without
using any expensive filter technique. The temperature increase in the surgeon’s head area is almost nonexistent. During development high attention was
paid to the performance of the new LED OT-lights in laminar-flow ceiling systems

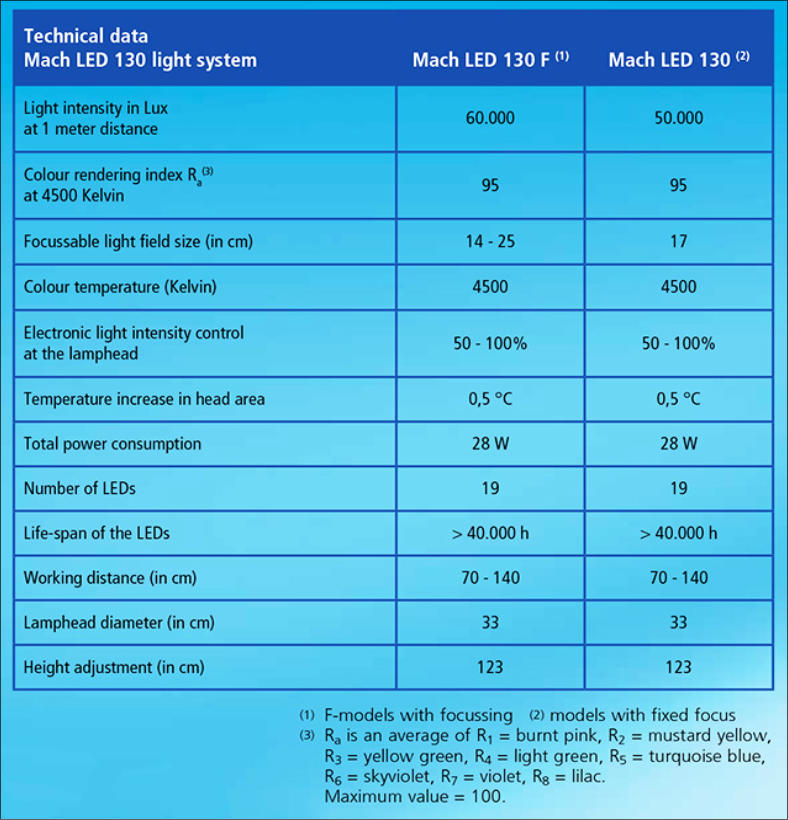

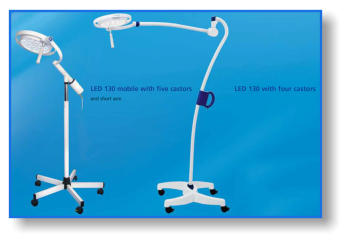

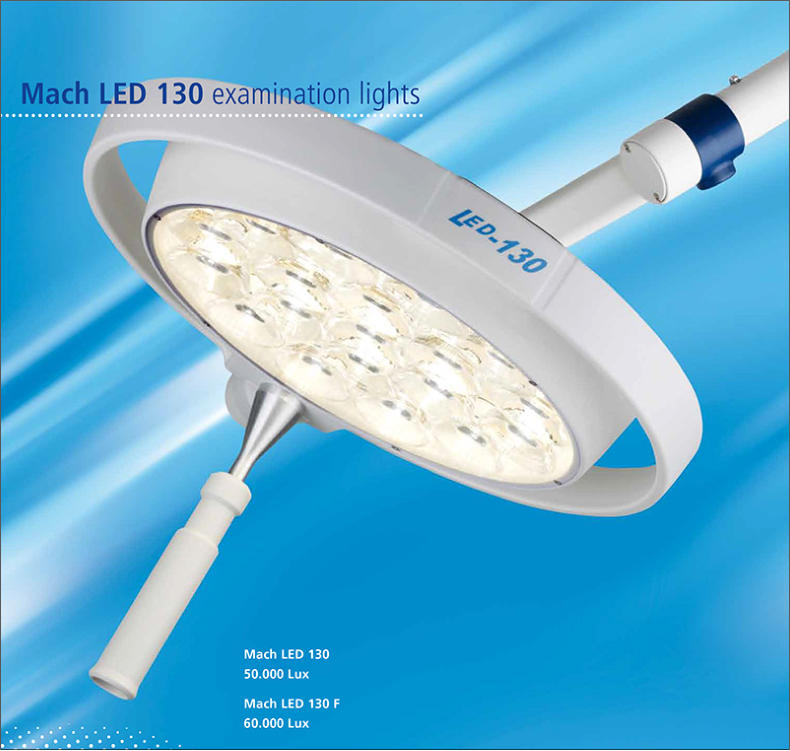

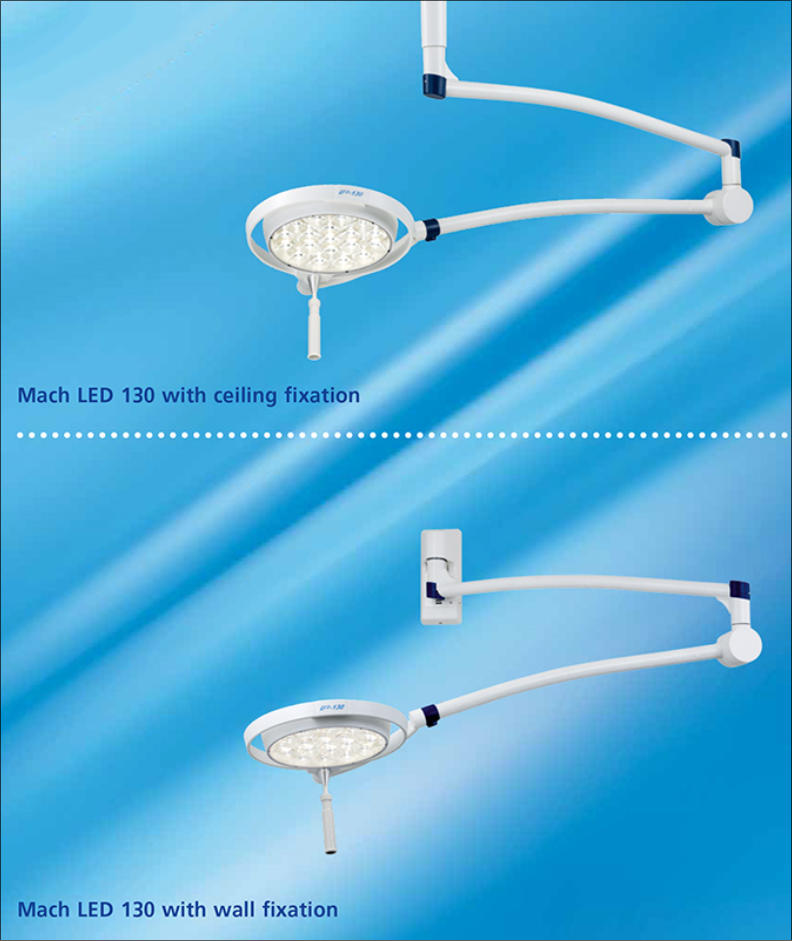

LED 130 - Compact examination light with LED-technology
- Fucusing optional

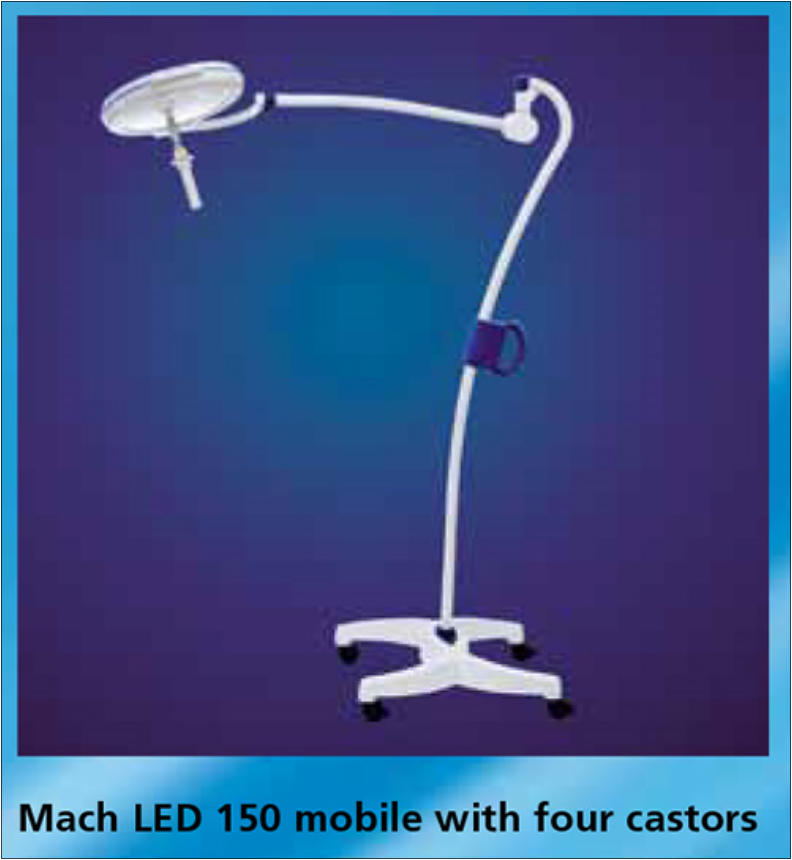

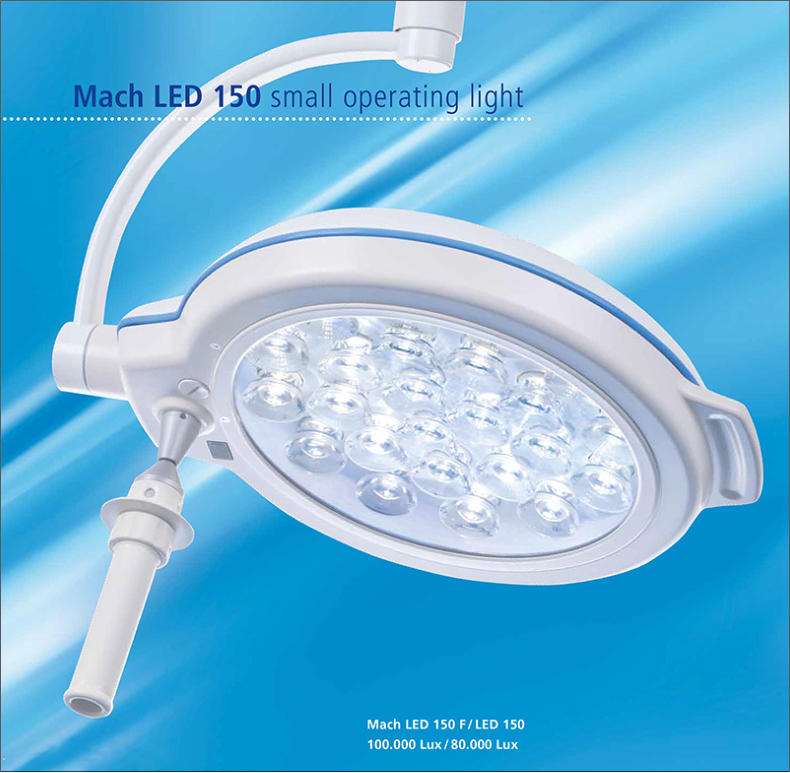

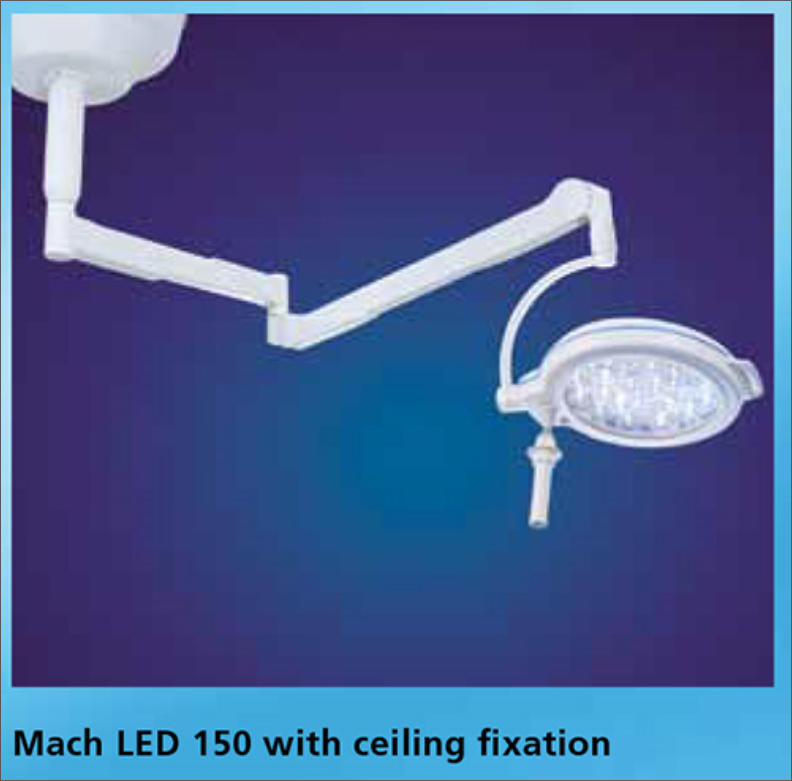

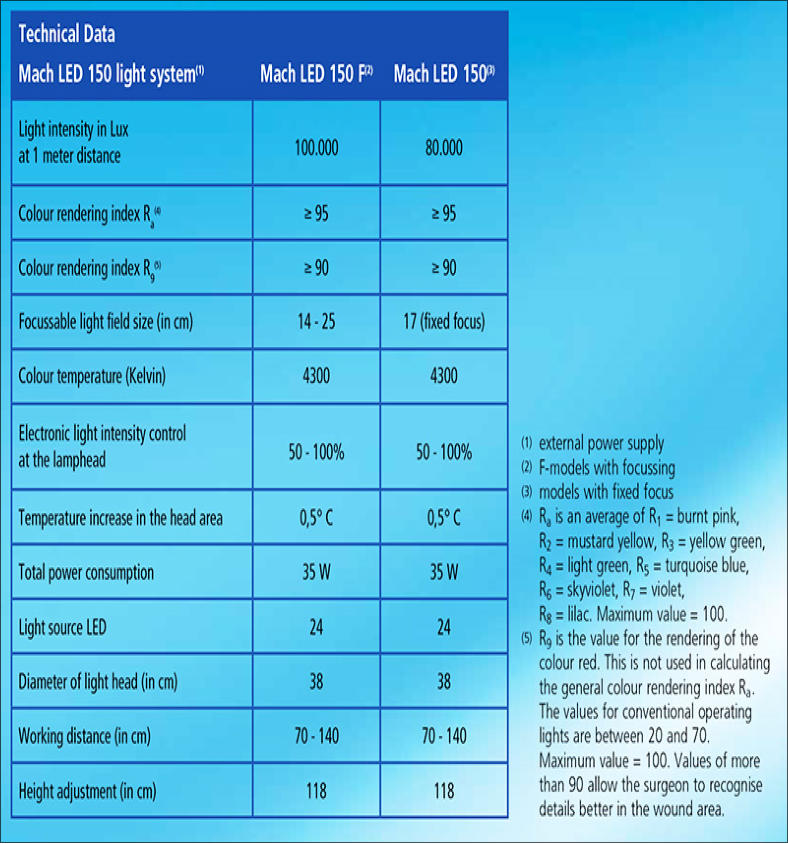

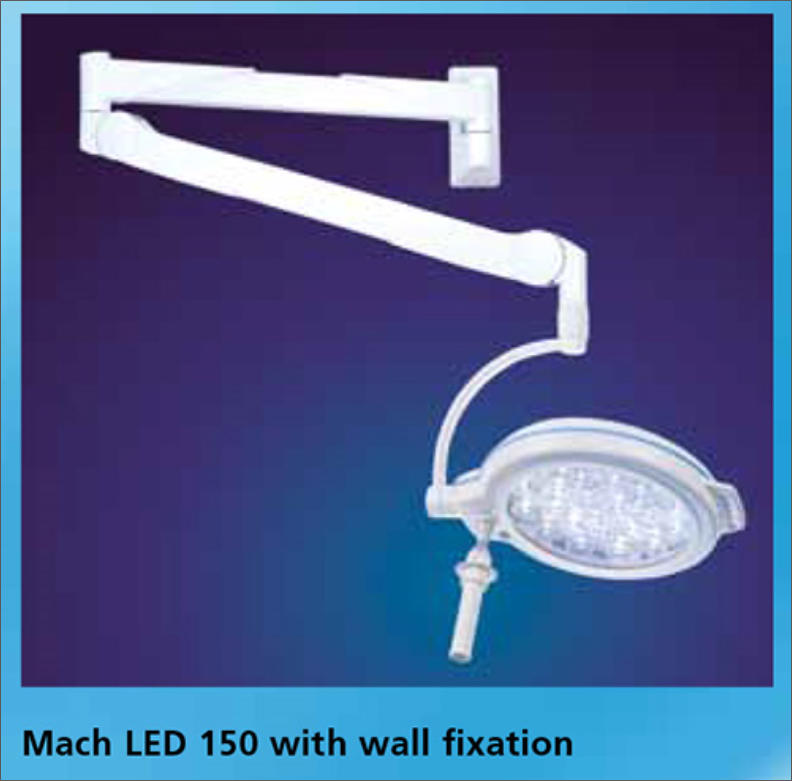

LED 150 - Compact examination light with LED-technology
