THEATRE - CONTROL PANELS
1 only wall box
1 only 1700x1300 S/Steel front panel
1 only 1200x600 x-ray viewing screen
1 only Radio player
1 only set speakers
1 only 220V/12V power pack
1 only arial
1 only buzzer and mute button
1 only set indication lights
1 only digital clock
1 only digital timer
4 only DP switches
6 only DP switched socket outlet
7 only gas bracket and punching including points
1 only nurse call punching (point by others)

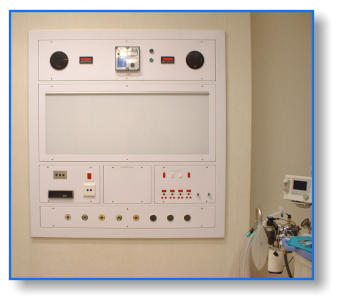

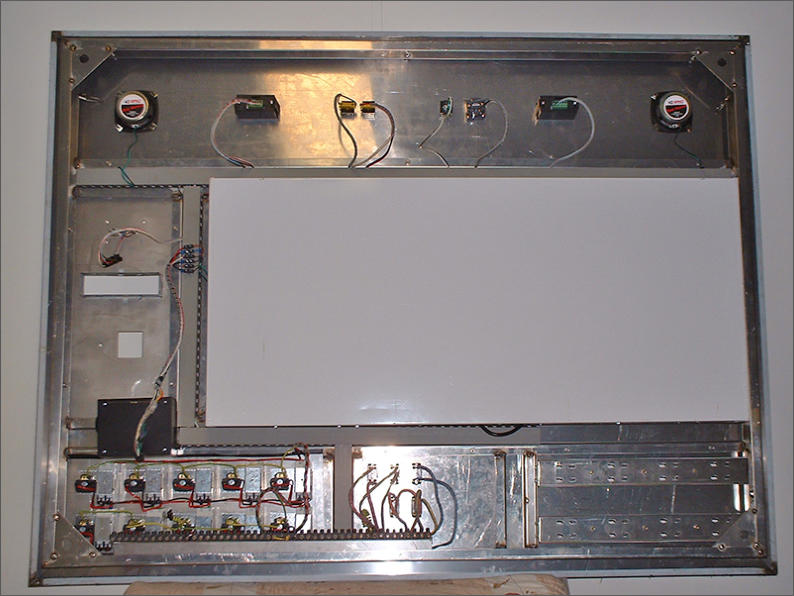

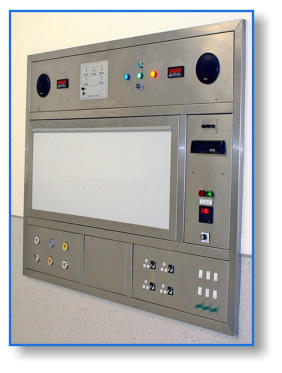

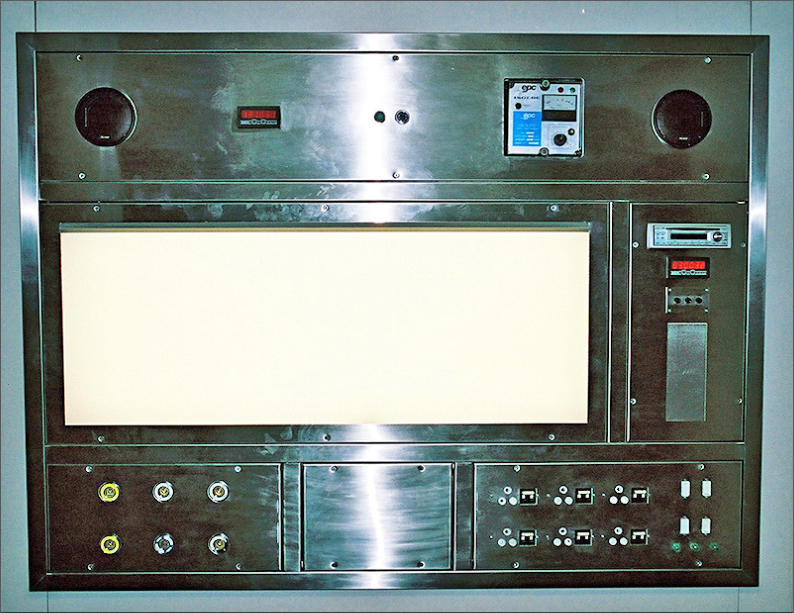

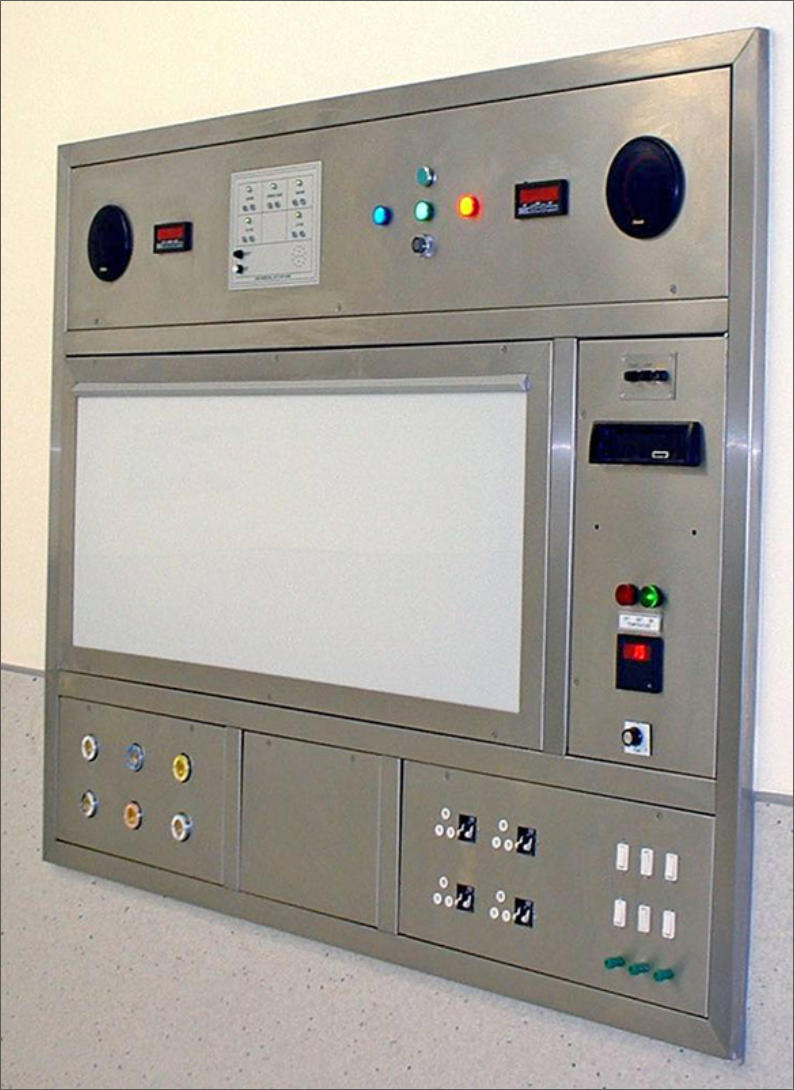

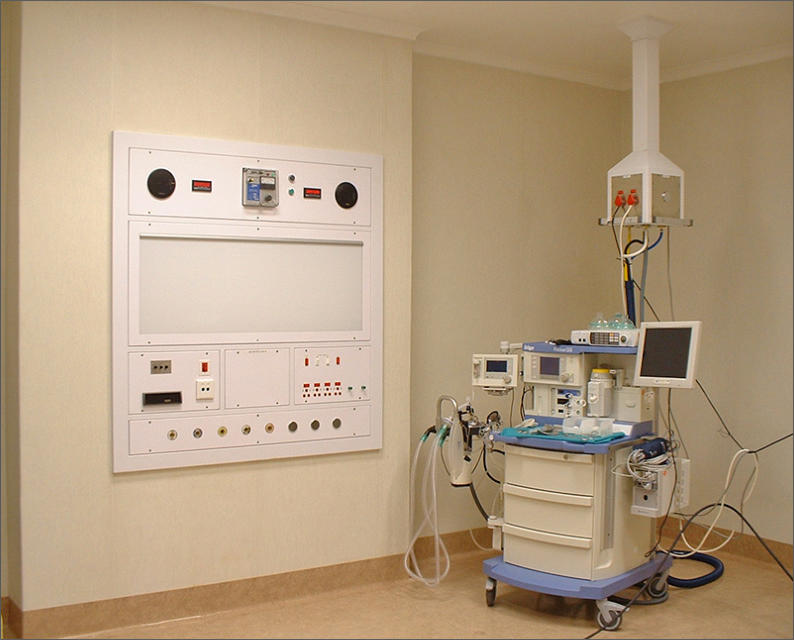

Recessed wall mounting system for the integration of operating theatre service facilities. Available with either rear or front access.
•
Recessed main housing: 2mm sheet steel, hot dip galvanised
•
Rear access doors: Sheet steel, white powder painted
•
Front panels: Brushed stainless steel
Services available in standard modules:
•
X-ray viewing screen
•
Switches for operating light, x-ray screen and theatre general
lighting
•
Patient earth
•
Digital elapsed timer and remote controls
•
A/C cut out
•
Socket outlets
•
Isoloc indicator light and buzer
•
Emergency bell
•
Gas valve outlets
•
Gas alarm cut out
Provision can be made for:
Punchings for communication, emergency call, radio system, radio deck and speakers, digital clock
Other services can be incorporated if specified.
All products adhere to the SABS 154 specification
